Place of Origin: Guangdong, China (Mainland)
Brand Name: Lansan
Model Number: cat5
Type: Cat 5
Number of Conductors: 8
conductor material: bare copper
condutor size: 1/0.48mm
insulation material: PE
jacket: PVC
certificates: CE/RoHS/UL/ISO
| Packaging Details: | as per client's request |
|---|---|
| Delivery Detail: | 7-15 business days after receiving 30% deposit |

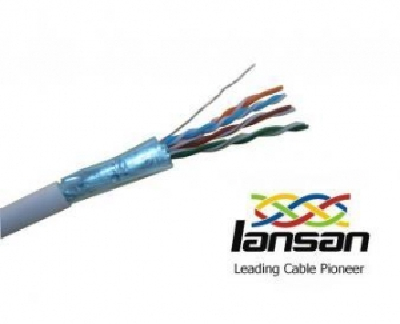

UTP FTP SFTP CAT5e LAN CABLE | |
Product Description: | |
Reference standard: UL,ISO9001:2000,CE | |
Conductor: Bare solid copper | |
RoHS complied PVC, PE or LSOH jacket | |
Complies to TIA/EIA-568B&ISO/IEC 11801 | |
Application: | |
Ethernet, 10 Base-T, 100 Base-T4, ATM, TP-PMD Seppch, Telephone, Multimedia, Trunk Wiring | |
Cable Construction: | |
Conductor Dimension: 0.50mm 0.51mm | |
Core Dimension: 0.91mm 0.92mm | |
No. Of Pairs: 4 | |
Nom. OD: 5.3mm 14.0mm 13.0mm | |
Type of Jacket: PVC/PE PVC/LSZH/RoHS | |
Electrical Characteristics: | |
Frequency(MHz): 1 4 10 20 31.25 62.5 100 | |
Attenuation(dB/100m): 2.0 4.1 6.5 9.3 11.7 17.0 22.0 | |
Impedance(ohm): 100 100 100 100 100 100 100 | |
Return Loss(dB): 17 20 22 20 18 16 15 | |
NEXT(dB/100m): 62.3 53.3 47.3 42.8 39.9 35.4 32.3 | |
ELFEXT: (dB/100m): 61 49 41 35 31 25 21 | |
PS NEXT(dB/100m): 62.3 53.3 47.3 42.8 39.9 35.4 32.3 | |
PS ELFEXT: (dB/100m): 61 49 41 35 31 25 21 | |
Packing: | |
1) Packing Lengths: | |
305m/roll, 100m/roll | |
2) Inner packing: Wooden reel, plastic reel, and paper reel available | |
3) Outer packing: Carton box, pull out box, pallet available. | |
4) as per client's request. | |
